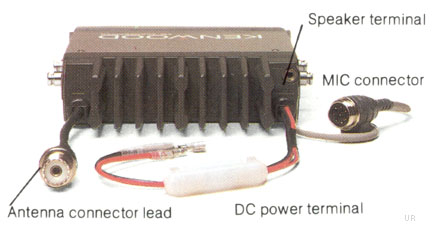

TM-211A back.jpg


APRS / TNC connection notes:

  • radio has no dedicated port for digital modes
  • 3.5mm plug (mono) for Audio-Out at the back (see output volume picture)



Output volume (peak-to-peak) measured on audio output socket using locally heard APRS stations as source.

TM-211A output-volume.jpg

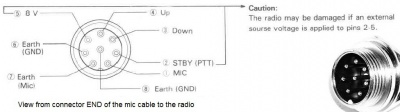

Pinout of the rear microphone connector.

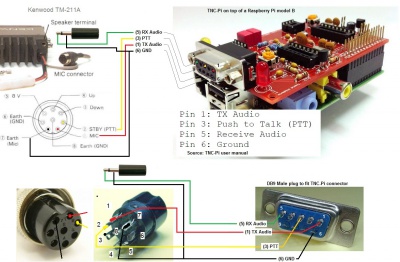

TNC-Pi interface cable
